seawater desalination plant reverse osmosis system 5 T/H factory price
Product description of ro water treatment plant
The reverse osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference material have different osmotic pressures.
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid ,microorganism, particles and organic materials, becoming the best choice in the engineering of modern purified water.
The most highlighted features are low energy consumption, no pollution, simple technique ,high-quality water and convenient operation and maintenance.
Technical data of ro water treatment plant
No. | item | Test result | |
1 | HS code | 8421299090 | |
2 | Salt rejection rate | 98.5% | |
3 | Working press | 0.6-2.0Mpa | |
4 | Voltage | 200v/50Hz,380V/50Hz,etc.customized | |
5 | material | Ss, CPVC, FRP, PVC | |
6
| Raw water (sea water) | TDS | <35000PPM |
Temperature | 15°C-45°C | ||
Recovery rate | 35% | ||
9 | Water-out conductivity (μs/cm) | 3--8 | |
10 | Product keywords | ro reverse osmosis plant price seawater desalination | |
11 | Reverse osmosis (RO)membrane | 8040/4040 | |
12 | Activated carbon | 25kg | |
13 | Inlet water SDI | <5 | |
14 | Inlet water PH | 3--10 | |

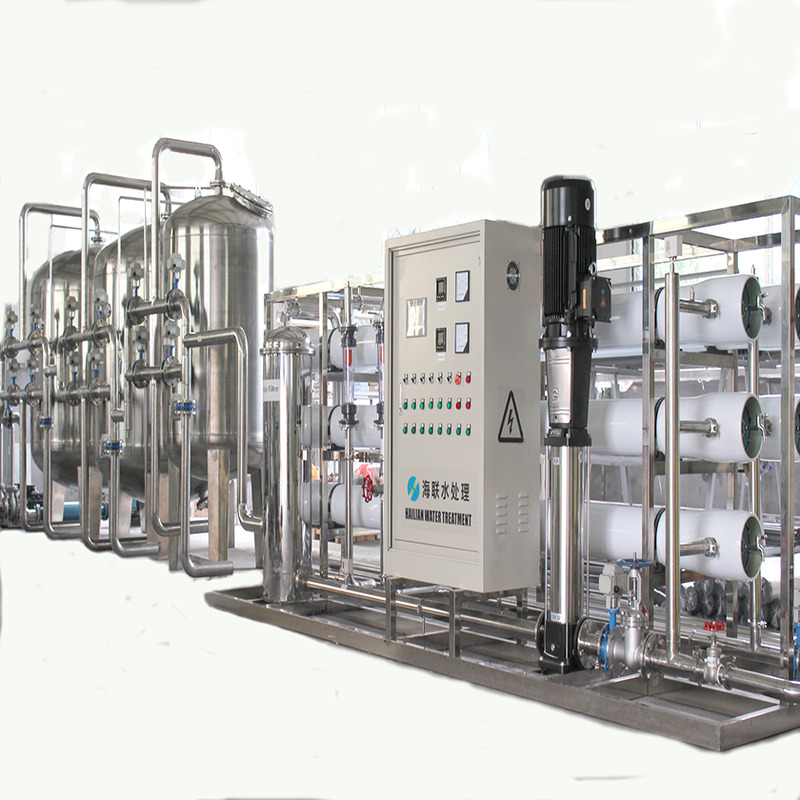

Photos of ro water treatment plant
Flow chart of ro water treatment plant
Reverse osmosis flow
Source tank---feed water pump---silica sands filter---activated filter---water softener(or inhibitor dosing)---cartridge/security/micro filter---high pressure pump---reverse osmosis system---
Stage conductivity of ro water treatment plant
Model | Capacity (T/H) | Power (KW) | Recovery (%) | One stage Finished water conductivity (μs/cm) | Two stage Water Conductivity (μs/cm) | EDI system Water Conductivity (μs/cm) | Raw water Conductivity (μs/cm) |
HL-500 | 0.5 | 0.85 | 55-75 | <10 | <2-3 | <0.5 | <300 |
HL-1000 | 1.0 | 2.2 | 55-75 | <10 | <2-3 | <0.5 | <300 |
HL-2000 | 2.0 | 2.0 | 55-75 | <10 | <2-3 | <0.5 | <300 |
HL-3000 | 3.0 | 3.0 | 55-75 | <10 | <2-3 | <0.5 | <300 |
HL-5000 | 5.0 | 5.0 | 55-75 | <10 | <2-3 | <0.5 | <300 |
HL-6000 | 6.0 | 6.0 | 55-75 | <10 | <2-3 | <0.5 | <300 |
HL-10000 | 10.0 | 10.0 | 55-75 | <10 | <2-3 | <0.5 | <300 |
HL-20000 | 20.0 | 20.0 | 55-75 | <10 | <2-3 | <0.5 | <300 |
Features of ro water treatment plant
(1),high salt rejuction:99%, and high recovery rate:75%.
(2),CIP cleaning system,automatic flushing when systems stops, thus prolong the membrane’s performance life.
(3),voltage protection,lack water protection, full water stop, emergency online monitoring the security of equipment operation.
(4),PLC control
Water level ,pumps ,valves ,conductivity ,PH ,flow ,pressure get monitored and displayed in front of you.
(5),various combination of purify process.
RO,RO+RO,RO+EDI,RO+EDI+UF,etc..according to the water quality you need.
(6),core components imported for world famous brand, Filmtec , Dow, can customized, you name.
Consumables replacement of ro water treatment plant
It is depends on local water quality and the filters you choose. when the water-out flow become less, you can wash it, thus prolonging the performance time.
Item No. | consumables | Performance life span |
1 | Quartz sand | 3 years |
2 | Activated carbon | 3 years |
3 | Water softening resin | 1 years |
4 | Pp filter | 6 months |
5 | Ro membrane | 24 months |
6 | UV lamp | 1 year |
FAQ of ro water treatment plant
(1),Are you a manufacturer or trading company?
Hailian is a professional manufacturer.
(2),Can we become your distributor in our country?
Yes, you can . actually we are looking for our partners .
(3),How about installation?
Generally, we export the equipments as a whole, before delivery , the machine has been integrated and commissioned already.
Also, we can send engineers to your country for installation and debugging. But the ticket, visa, hotel on customers sides.
(4), What is your warranty?
1 year warranty. Our machine can work 5-8 years before repair.
(5),What main products does your factory manufacture?
Reverse Osmosis system, Ultra-Filtration system, soften water equipment, EDI system, polished mixed-bed system, and many other filters. Filling machine are full production line for bottle water, wine and other kinds of liquid.
(6),What kind of equipment should I choose?
Depending on raw water quality, water-out quality requirements, and flow(L/H)?
It is better for you to provide us raw water analysis/water test report.
(7),How do I know you the right guy who can work together with?
We are a factory with 4 years experiences, in which we complete many project home and abroad. If you come to China, we can show you around our projects , and you can see they work very well and smoothly. Or you let your friend inspect us.
Full running test video before shipment can be sent to you for confirming. The water can be tested by third party of local authorities. Or you can adopt Trade Assurance service ,provided by Alibaba.com ,100% cover your money ,and ensure on-time shipments.
cooperation partners of ro water treatment plant
Company Profile
Shandong Hailian Water Treatment Equipment Technology Co.,Ltd is a hi-tech enterprises specialized in water treatment equipment and filling machine. Water treatment equipment mainly include Reverse Osmosis system, Ultra-Filtration system, soften water equipment, EDI system, polished mixed-bed system, and many other filters. Filling machine are full production line for bottle water, wine and other kinds of liquid.
At its very beginning, Halilian has already decided to focus on oversea market, aim to provide clients high quality equipment and full services. Now Hailian's equipment has been accepted by clients from USA, Australia, Brazil, Saudi Arabia, South Africa and other countries in Africa and Asian.
