홈 /제품 소개/Ro 물 처리 기계/Boiler 1000LPH Reverse Osmosis Well Water RO System Desalination Saltwater Filter Machine Pure/Industrial/Potable Brackish Purifier

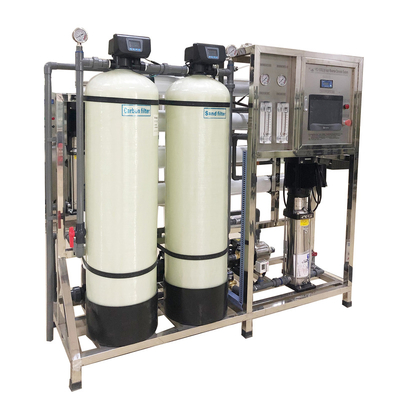

Boiler 1000LPH Reverse Osmosis Well Water RO System Desalination Saltwater Filter Machine Pure/Industrial/Potable Brackish Purifier

1.0 Units
MOQ
Boiler 1000LPH Reverse Osmosis Well Water RO System Desalination Saltwater Filter Machine Pure/Industrial/Potable Brackish Purifier
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC, RO membrane
Material: Wooden packaging
Weight: 350KG
Size: 1870*650*1850mm
Power: 1.5kw
Warranty: 1 Year
Productivity: 1000L/Hour
Product name: 1000LPH borehole reverse osmosis brackish water ro system
Pretreatment filter: Quartz sand/ activated carbon/ antiscalent dosing/ PP filter
Pump optional: Ningxiao/ CNP/ Grandfos
Pipeline fittings: U-PVC/ SUS316
Function: Water treatment
Capacity: 1000liters per hour
Electrical power: 220V/ 380V, 1ph/3ph, 500Hz/60Hz
Application: Pure / Industrial / Drinking/ Boiler Water
Control Valve: Automatic / Manual
RO Membrane: DOW (DuPont)
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
기본 정보
결제 및 배송 조건
제품 설명
Company Information

Input Your Owned Water, Output Your Needed Water


Kai Yuan company which is >12years experience in water treatment with ISO9001, CE, SGS Certification, good feedback, excellent quality and top 5 supplier in China. (Our mission: Input your owned water, output your needed water. Our values: Build win-win relationship with client, staff and supplier.)

Our company approved: ISO9001, CE, SGS, utility model patent certificate, water product sanitation license,
MIAC(China Membrane Industry Association), China Water Enterprises Confederation Desalination Branch...

Our Service:
A team of experienced engineers are dedicating in developing, manufacturing, installing and debugging the equipments and international sales can be contacted any time. We have not only strict quality control, products are approved by CE and SGS, but also considerate customer service hot-line. Meanwhile, professional engineers can provide satisfying plan
as customer's requirements. i. e. OEM/ODM service is available.

We have more than 20 engineers, they help to supply all kind of treatment process according to customers their raw water quality and output water requirement, all of them have more than 10years experience, pipe connection technology can acheved high medical level, also they can help to go to install our machine all over the world if customer they want; so in others words we are 100% OEM/ODM professional team, and we provide free lifetime technique support with you^^

Our advantages:
A. Stable quality, do not change suppliers >12 years;
B. Price is ideal and keep the price fixed , customers believe us;
C. Fast delivery and high efficiency, we pay great attention to timeliness for the convenience of customers;
D. Professional team, tell us what you needs, we will quickly provide a suitable solution with you.
Product Description
1000LPH reverse osmosis brackish well water ro system desalination salt water filter machine purifier
Name
1TPH Brackish RO System
Voltage
220V/ 380V 50Hz/60Hz
Size
1870*650*1850mm
Power
2.5KW
Material
FRP tank+ SS pipe + tank
Recovery rate
40%
Function
raw water purifier
Water production
1000Liters per hour
Application
Industrial of electricity, electronics, food, beverage, pharmacy, chemistry; drinking water project, petrochemical industry, seawater desalination
Effect
SDI≤1, turbidity NTU≤1, SS<1mg/L, removal rate of microorganisms, bacteria, E. coli, pathogens >99%

 * Application Scope: TDS≤5000mg/L(design as per your raw water condition)
* Output Water Quality: TDS≤150mg/L.
* Capacity: 1m3/hour
* Meet the "World Health Organization (WHO) Guidelines for Drinking Water Quality"
* Recovery Rate: 35%~50%
* Desalination rate:97%-99%
* Adapted Seawater Temperature: 5.0~30.0°C
* Brackish Water desalination plants of different capacity ranges from 1T/D to 10000T/D

This small ro plant uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.

Pictures show:
Capacity (our production range :100LPH-200TPH)
Related products
500L/H SS RO
Softener System
1000L/H Salty
Water System
3500L/H Ultrafiltration
UF Sytem
500L/H Ultra Pure RO+EDI+MB system
3T/H Softener System
5T/H RO System
6T/H Salt RO System
10T/H SS RO System
Process: raw water tank(buyer provided)→ raw water pump→quartz sand filter →activated carbon filter→anti-scale dosing system→security filter→high pressure pump→ro system→pure water tank(buyer provided)+UV sterilizer(ozone generator) +water supply point
Some parts function for your reference as below^^:
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances
Anti-scale dosing system): add antiscalant(customer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.
Security filter: fill cation resion inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV sterilizer(ozone generator): for killing bacterial in water, be safe for drinking.
CIP system: its help to cleaning the RO membrane, so that it can be have long life span^^

Component:

There are several kinds of consumables you need to replace regularly. (1000LPH)

a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. PP Filter cartridge: replaced about every 1 month
d. Ro membrane: replaced about every 2 year

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

Application:

Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......

Treated water:
1. Electronic industry: pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
Packing & Delivery

We have stock all year round such as 500LPH, 1000LPH reverse osmosis system. If you want now then take it now^^


Delivery time: 1-7working days for small machine, 15-45working days for big machine(depend on raw materials stocking)

Export standard packing: carton/wooden case(plywood), no need to fumigate, suitable for shipping.

FAQ

1.What is the Guarantee and after sale-service Kai yuan company can supply ?

It is one year guarantee ( except for Artificially damaged)

Any problems with the accessories, like valves , pumps etc. within 1 year , we could delivery to you for free .

After one year, if there's any fault, we provide 24hours online technical support and will make measures to solve it.

2.Does the machine/equipment difficult to install ?
Kai yuan factory already connect/adjust well for the machine before delivery, and we will provide the specific entire system"User Manual", if need can take Video for how to operate machine. .
3.Does Kai yuan will help customer install the machine in their country ?
In additional , Kai yuan can also send their engineers to customer place to install this equipment and train staff, but the buyer should pay for the relevant cost for our workers.
4.What is the packing of this machine ? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you open wooden case to pick out of machine is ok .
5. What is requirement information i need to provide for achieve the suitable ro machine/other relevant products i want ? It is kindly that you could provide us a raw water analysis /water test report .


How to plaec order?


Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours.


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
