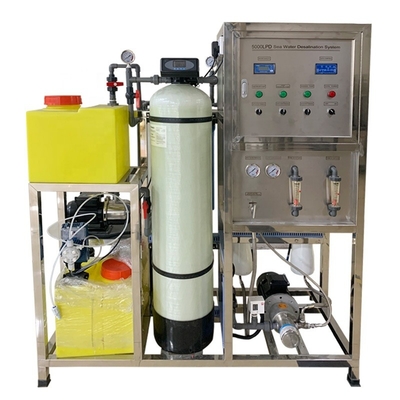

Specification for 5000L/D sea water desaliantion system | ||||||
Item | Material/Model | Brand | Function | |||
Raw water pump | SS316 | CNP | Provide pressure for raw water | |||
Quartz Sand filter | FRP | China | Remove large particle | |||
Antiscalant dosing system | 0-3L/H | SEKO | Remove hardness in water | |||
Security filter | PVC/SS 1mircon/5mircon | China | Block impurities greater than 5micron(1micron) | |||
High pressure pump | SS316 | Danfoss | Provide pressure for water into RO membrane | |||
RO membrane | 4040 | DuPont | Remove heavy mental ion,bacterial,virus. Desalination rate is more than 98% | |||
UV Sterilzier(Optional) | 14w | China | Kill 99% bacterial (For drinking directly) | |||
Ozone Genernator(Optional) | 3g/l | China | Kill 99%bacterial and keep 2hours.(For making bottled water) | |||
raw water+ raw water tank+ raw water pump+Quartz sand filter+ Antiscalant dosing system+ security filter+ high pressure pump+ RO membrane+ pure water tank+ UV sterilizer (ozone generator) + water supply points
Advantages:
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.RO system uses imported USA DOW membrane
4.Automatic switch on when lack of water,and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water condutivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
Packaging | ||
Size | 1700 (L) * 620(W) * 1750 (D) | |
Weight | 250kgs | |
Packaging Details | The normal package is wooden box(Size: L*W*H). we will pack it according to customers special request. | |
Manual Operation | ||
Manual Operation and video | we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation. | |
